STRUCTURAL FRAMING FASTENERS FOR PROFESSIONALS & DIY
Decks
Engineered type-17 points ensure fast starts, reduce installation torque and eliminate the need for pre-drilling.
laminated beams
Designed for both ease of installation and superior strength, Tie-Master screws are a time-saving alternative to lag screws or bolts that require pre-drilling.
stairs
These structural wood screws are ideal for the contractor and DIY folks alike and are available in all the sizes to match your installation environment.
joist and ledger
Tie-Master heavy-duty wood fasteners are designed for wood-to-wood construction such as ledger boards, under-deck connections, trusses and dimensional lumber.
Tie-Master Is the ProFESSional's choice

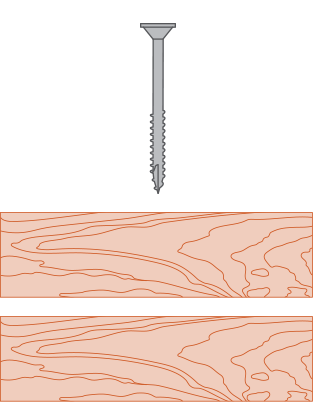

Tie-Master is a heavy-duty, code-compliant wood screw engineered for structural framing jobs. The type-17 point eliminates pre-drilling and makes for fast installations with reduced torque, while its specially designed head with countersink nibs provides a clean, flush finish. The draw-tite shank design pulls trusses and 2 and 3-ply dimensional wood together as the fastener is driven in.
Tie-Master is tested and supported by engineering data that conforms to the current ICC standards – ICC-ESR#3531. More Information
BEST SOLUTION
Tie-Master is a single-design fastener for all your structural framing projects, including wood to wood construction, decks, docks and boardwalks, retaining walls, laminated beams, rim to joists, trusses, joist and ledger and underdeck connections.
WHO NEEDS TIE MASTER?
code compliant:
PERFORMANCE DATA:
Application: Structural
Compliance with the following codes:
- 2015, 2012, 2009 International Building Code® (IBC)
- 2015, 2012, 2009 International Residential Code® (IRC)
All local code requirements must be followed and a design professional should be consulted for proper spacing requirements.
BEND YIELD 150,000 (psi)

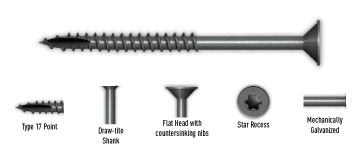

FEATURES:
- Self-countersinking head design seats flush
- Draw-Tite shank pulls wood members together
- Star 40 recess for a secure driving experience
- Type 17 self-drilling point eliminates pre-drilling
- Mechanical galvanized exterior-grade coating
- ICC compliant - ICC-ESR#3531

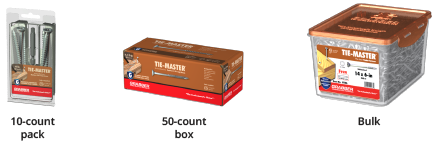

PACKAGING OPTIONS AVAILABLE:
